C-432
เพิ่มเมื่อ: 28/03/2017
แก้ไขล่าสุด: 01/06/2017
-
- TechnicalDetail
Performance Speed 9 mph (14.4 km/h) Range 20 miles (32 km) Load Capacity 1,400 lbs. (635 kg) Tow Capacity DBP: 175 lbs. Tow Capacity: 8,750 lbs. (3977 KG) Passengers 1 Dimensions Weight 918 lbs. (417 kg) Length 79" (200 cm) Width 29.5" (75 cm) Height Less Cab: 40" (101 cm)
With Cab: 64.5" (164 cm)Hitch Height 8.5" (21.58cm) Outside Turning Radius 70" (177.8cm) Wheel Base 28" (71.1cm) Deck Width: 28.5" (74.9cm)
Length: 40" (101.6cm)
Height: 23.9" (58.4cm)Chassis Frame Construction Steel unitized body with heavy duty 16 gauge diamond plate Powertrain Type: Electric
Power: 110/220V, 50/60Hz
Transmission: Transaxle Assembly, Sealed Silent Chain Primary Reduction to Hypoid Ring and Pinion Gears
Drive:
Controller: SeriesBattery Type: Six 217 amp hr., 6 volt (lead acid)
System Voltage: 36
Charger: Built-InBrakes Rear: Mechanical brake band/drum at differential
Front: N/A
Parking: HandSuspension Rear: Solid
Front: SolidSteering Manual, Chain Linkage, Front Fork Tires Rear: 4.80 x 8 pneumatic
Front: 4.80 x 8 Load Range B, PneumaticInterior Seats Driver:
Passenger:Instrumentation Battery status indicator, forward/reverse selector, key switch, electric horn
- Capacity3969 kg.
- TypeElectric
- DOWNLOADS

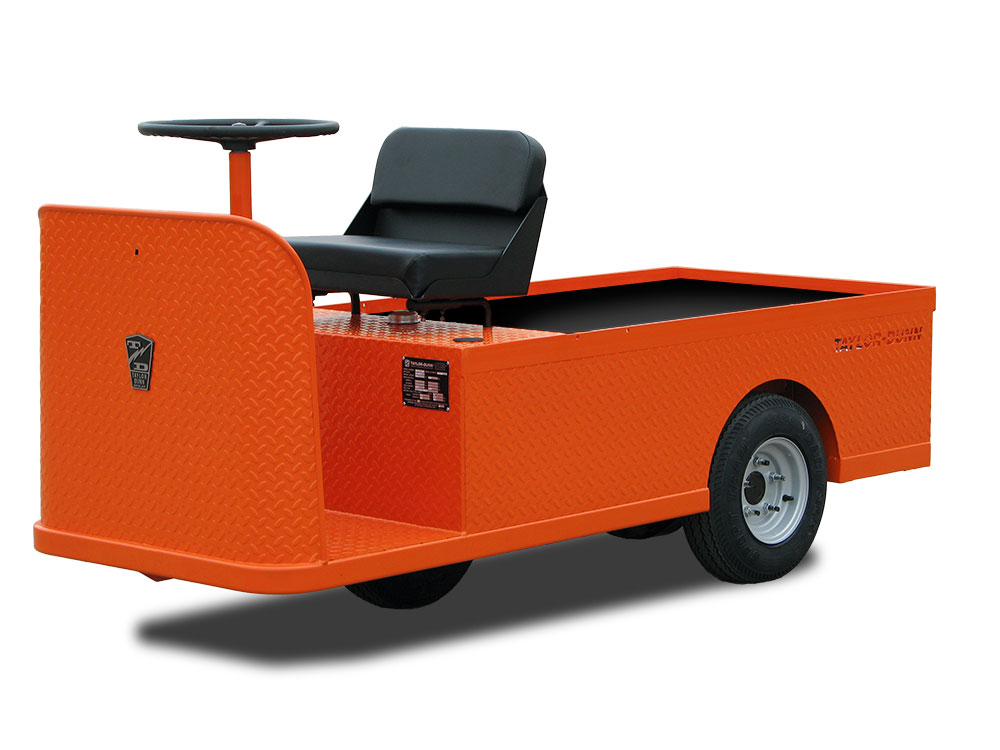

- MoreDetail2Taylor-Dunn’s C-432 has the shortest turning radius available in a sit-down combination burden carrier/tow tractor. With a 28” wheel base, these vehicles can maneuver into corners other powered trucks simply cannot reach – indoor or outdoor.
Heavy-duty batteries, built-in fully-automatic chargers make sure these trucks are always ready to go. They are ideal for moving loads over smooth floors in warehousing, hospitals, schools and other environments where quiet fume free operation is necessary.
Only 30 inches wide, these compact trucks clear narrow aisles and standard doorways. Full 360° turns can be made in a mere 140”.
Adjustable seats and all-steel construction ensure a comfortable, safe ride. Individually padded seat and backrest are covered with tough heavy-duty vinyl upholstery.
Bumpers are heavy-duty steel welded to the frame; 16 gauge steel diamond plate facing covers all exterior surfaces.
| Performance | |
|---|---|
| Speed | 9 mph (14.4 km/h) |
| Range | 20 miles (32 km) |
| Load Capacity | 1,400 lbs. (635 kg) |
| Tow Capacity | DBP: 175 lbs. Tow Capacity: 8,750 lbs. (3977 KG) |
| Passengers | 1 |
| Dimensions | |
| Weight | 918 lbs. (417 kg) |
| Length | 79" (200 cm) |
| Width | 29.5" (75 cm) |
| Height | Less Cab: 40" (101 cm) With Cab: 64.5" (164 cm) |
| Hitch Height | 8.5" (21.58cm) |
| Outside Turning Radius | 70" (177.8cm) |
| Wheel Base | 28" (71.1cm) |
| Deck | Width: 28.5" (74.9cm) Length: 40" (101.6cm) Height: 23.9" (58.4cm) |
| Chassis | |
| Frame Construction | Steel unitized body with heavy duty 16 gauge diamond plate |
| Powertrain | Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Silent Chain Primary Reduction to Hypoid Ring and Pinion Gears Drive: Controller: Series |
| Battery | Type: Six 217 amp hr., 6 volt (lead acid) System Voltage: 36 Charger: Built-In |
| Brakes | Rear: Mechanical brake band/drum at differential Front: N/A Parking: Hand |
| Suspension | Rear: Solid Front: Solid |
| Steering | Manual, Chain Linkage, Front Fork |
| Tires | Rear: 4.80 x 8 pneumatic Front: 4.80 x 8 Load Range B, Pneumatic |
| Interior | |
| Seats | Driver: Passenger: |
| Instrumentation | Battery status indicator, forward/reverse selector, key switch, electric horn |
Heavy-duty batteries, built-in fully-automatic chargers make sure these trucks are always ready to go. They are ideal for moving loads over smooth floors in warehousing, hospitals, schools and other environments where quiet fume free operation is necessary.
Only 30 inches wide, these compact trucks clear narrow aisles and standard doorways. Full 360° turns can be made in a mere 140”.
Adjustable seats and all-steel construction ensure a comfortable, safe ride. Individually padded seat and backrest are covered with tough heavy-duty vinyl upholstery.
Bumpers are heavy-duty steel welded to the frame; 16 gauge steel diamond plate facing covers all exterior surfaces.
