UT80-100P
เพิ่มเมื่อ: 16/03/2017
แก้ไขล่าสุด: 01/06/2017
-
- Capacity8000 - 10000 kg.
- TypeDiesel
- DOWNLOADS
- TechnicalDetail
Engine: Cummins 4.5L Diesel (82kW)
Transmission: 2-speed autoshift, 2-speed forward, 2 reverse.
Masts: 2-stage LFL, up to 6.0m
Carriages: 2040mm(Class IV)
Forks: 1500x160x75mm (Class IV), as standard with 1800 & 2400mm lengths also available
Pneumatic Tyres: Dual Drive: 9.00x20-14PR: Steer: 9.00x20-14PR
Standard equipment also includes: 3 & 4 way valves & hoses, full suspension seat
Options include: Counterweight Exhaust, Air Intake with Pre-cleaner, Integral Sideshift and Fork Positioner, Valve & Hose Groups - 3 and 4 way, Cab with/without Heater, Air Conditioning, Rear Work Light, Superelastic tyres

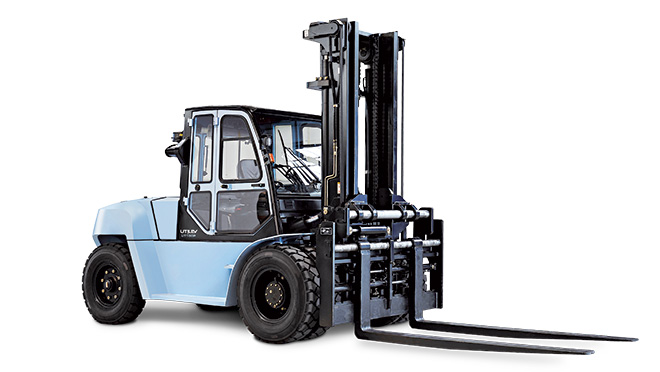

UTILEV® UT80-100P forklift trucks are available with a Cummins Euro 3A compliant 4.5l Diesel engine and a two-speed autoshift transmission, delivering low noise and vibration levels.*
Both the drive and steer axles are designed for durability and longevity. Efficient cooling and filtration reduces the risk of unplanned downtime - All trucks feature a standard warranty of 12 Months / 2000 Hours.
The range of rigid masts provides excellent visibility for precise load handling and is compatible with a range of carriages, load backrests and forks, as well as attachments, including an integral sideshift.
The operator compartment offers easy driver access, thanks to the low intermediate step height and conveniently placed grab handles. The standard seat delivers superior comfort and lumbar support to ensure that the operator can work efficiently throughout the day.
The small diameter steering wheel features light, precise steering. The steering column is tilt adjustable for optimum comfort and includes a forward / reverse lever and direction indicator lever. The manual hydraulic controls are cowl-mounted and within easy reach.
The uncluttered floor plate offers excellent foot space with a traditional three pedal arrangement, for accelerator, brake and inching. Inching is mechanical and adjustable, delivering precise truck positioning during handling operations. The conventional drum brakes with automatic adjustment provide excellent stopping power.
Rear view mirrors, an audible reverse alarm and a full light kit, including a strobe light, are fitted as standard, to facilitate handling operations.
*NOTE: Currently only available to order in Non-CE territories.
Engine: Cummins 4.5L Diesel (82kW)
Transmission: 2-speed autoshift, 2-speed forward, 2 reverse.
Masts: 2-stage LFL, up to 6.0m
Carriages: 2040mm(Class IV)
Forks: 1500x160x75mm (Class IV), as standard with 1800 & 2400mm lengths also available
Pneumatic Tyres: Dual Drive: 9.00x20-14PR: Steer: 9.00x20-14PR
Standard equipment also includes: 3 & 4 way valves & hoses, full suspension seat
Options include: Counterweight Exhaust, Air Intake with Pre-cleaner, Integral Sideshift and Fork Positioner, Valve & Hose Groups - 3 and 4 way, Cab with/without Heater, Air Conditioning, Rear Work Light, Superelastic tyres
UTILEV® UT80-100P forklift trucks are available with a Cummins Euro 3A compliant 4.5l Diesel engine and a two-speed autoshift transmission, delivering low noise and vibration levels.*
Both the drive and steer axles are designed for durability and longevity. Efficient cooling and filtration reduces the risk of unplanned downtime - All trucks feature a standard warranty of 12 Months / 2000 Hours.
The range of rigid masts provides excellent visibility for precise load handling and is compatible with a range of carriages, load backrests and forks, as well as attachments, including an integral sideshift.
The operator compartment offers easy driver access, thanks to the low intermediate step height and conveniently placed grab handles. The standard seat delivers superior comfort and lumbar support to ensure that the operator can work efficiently throughout the day.
The small diameter steering wheel features light, precise steering. The steering column is tilt adjustable for optimum comfort and includes a forward / reverse lever and direction indicator lever. The manual hydraulic controls are cowl-mounted and within easy reach.
The uncluttered floor plate offers excellent foot space with a traditional three pedal arrangement, for accelerator, brake and inching. Inching is mechanical and adjustable, delivering precise truck positioning during handling operations. The conventional drum brakes with automatic adjustment provide excellent stopping power.
Rear view mirrors, an audible reverse alarm and a full light kit, including a strobe light, are fitted as standard, to facilitate handling operations.
*NOTE: Currently only available to order in Non-CE territories.
